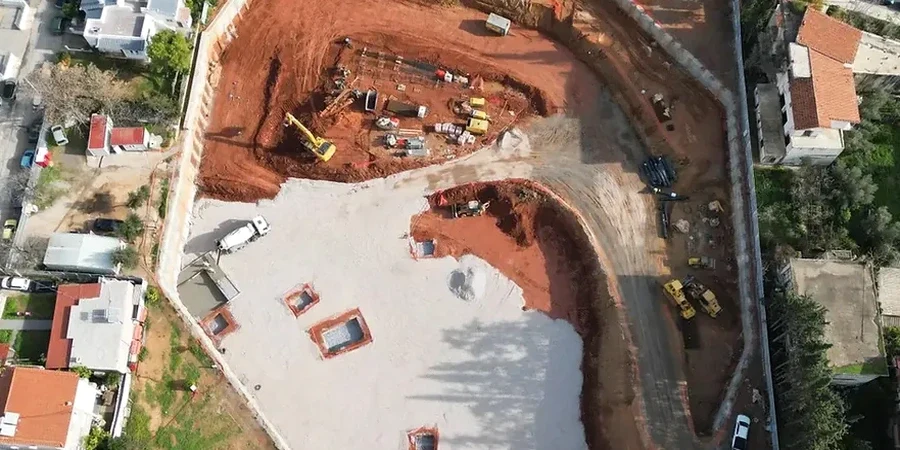

Deep Excavation Design in Irving TX: Geotechnical Engineering for Complex Urban Sites

For a standard commercial excavation in Irving, the structural and geotechnical design package typically ranges from US$2,140 to US$7,770. The fee depends on the shoring complexity, depth of cut, and the number of adjacent structures requiring settlement analysis. A 20-foot single-level parking basement will be at the lower end, while a 50-foot excavation with tiebacks and a secant wall in Las Colinas will approach the upper end due to the extensive finite element modeling required.

Expansive clays like the Eagle Ford formation exert significant swell pressure when wetted, which can overload a rigid shoring wall. We specify a compressible zone behind the lagging or shotcrete facing to accommodate the volume change. Our earth pressure diagrams incorporate an additional apparent pressure for swell, based on the soil's suction-water content relationship measured in the lab, preventing the transfer of swelling loads into the bracing system.

Yes, zero-lot-line excavations are common in Irving. We perform a detailed condition survey and install vibration monitors before starting. The design uses a stiff secant pile wall or a heavily reinforced soldier pile system with pre-loaded tiebacks. We model the adjacent building's foundation as a surcharge and limit lateral wall movement to under 0.25 inches to protect the neighboring structure from angular distortion.

At minimum, we need deep borings extending at least 1.5 times the excavation depth below the bottom of cut, with SPT N-values, pocket penetrometer readings, and laboratory tests for unconfined compressive strength and swell potential on undisturbed samples. Piezometer readings over a seasonal cycle are also critical in Irving to capture the high groundwater period in spring. Without this data, the design assumptions for passive resistance are unreliable.

Once we have the complete geotechnical report, the design phase takes about three to four weeks to produce the calculation package and construction drawings. The City of Irving building permit review for a complex shoring plan typically adds another two to three weeks. We coordinate directly with the city's plan reviewers to address any comments related to IBC Chapter 33 safeguards during construction, keeping the overall timeline to around six to seven weeks.
